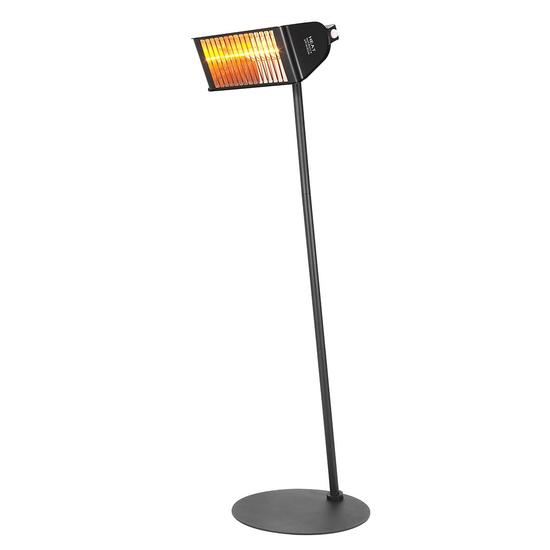

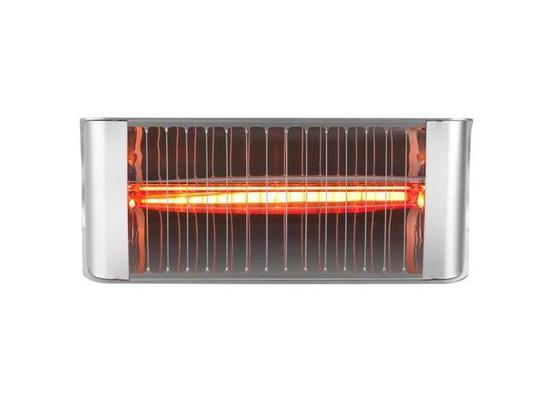

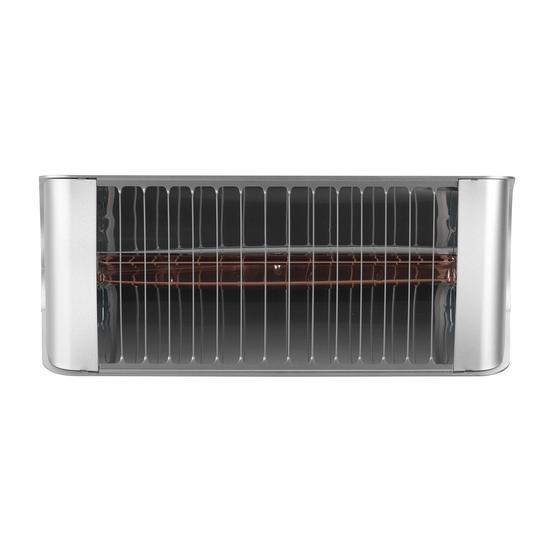

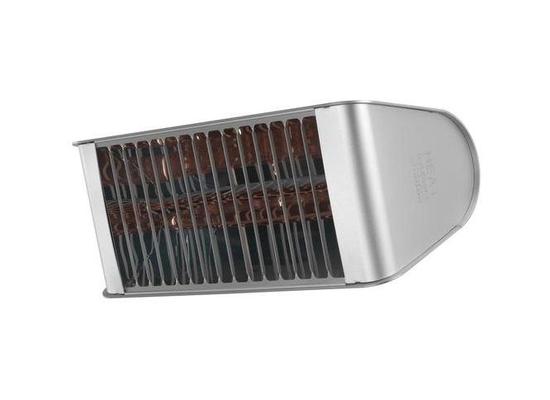

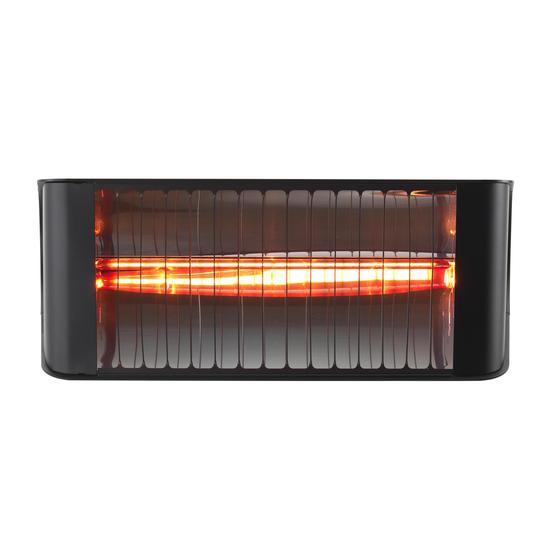

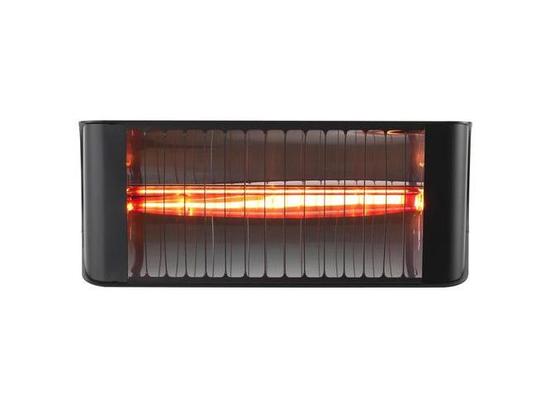

Shadow Fatboy 2.4kW Infrared Heater

Shadow Fatboy 2.4kW Infrared Heater

from £340.99 + VAT
code: 901605
In stock
New
Sale
Sold out
Pre-order
RRP: £0.00
from £340.99 + VAT
from £409.19 inc. VAT

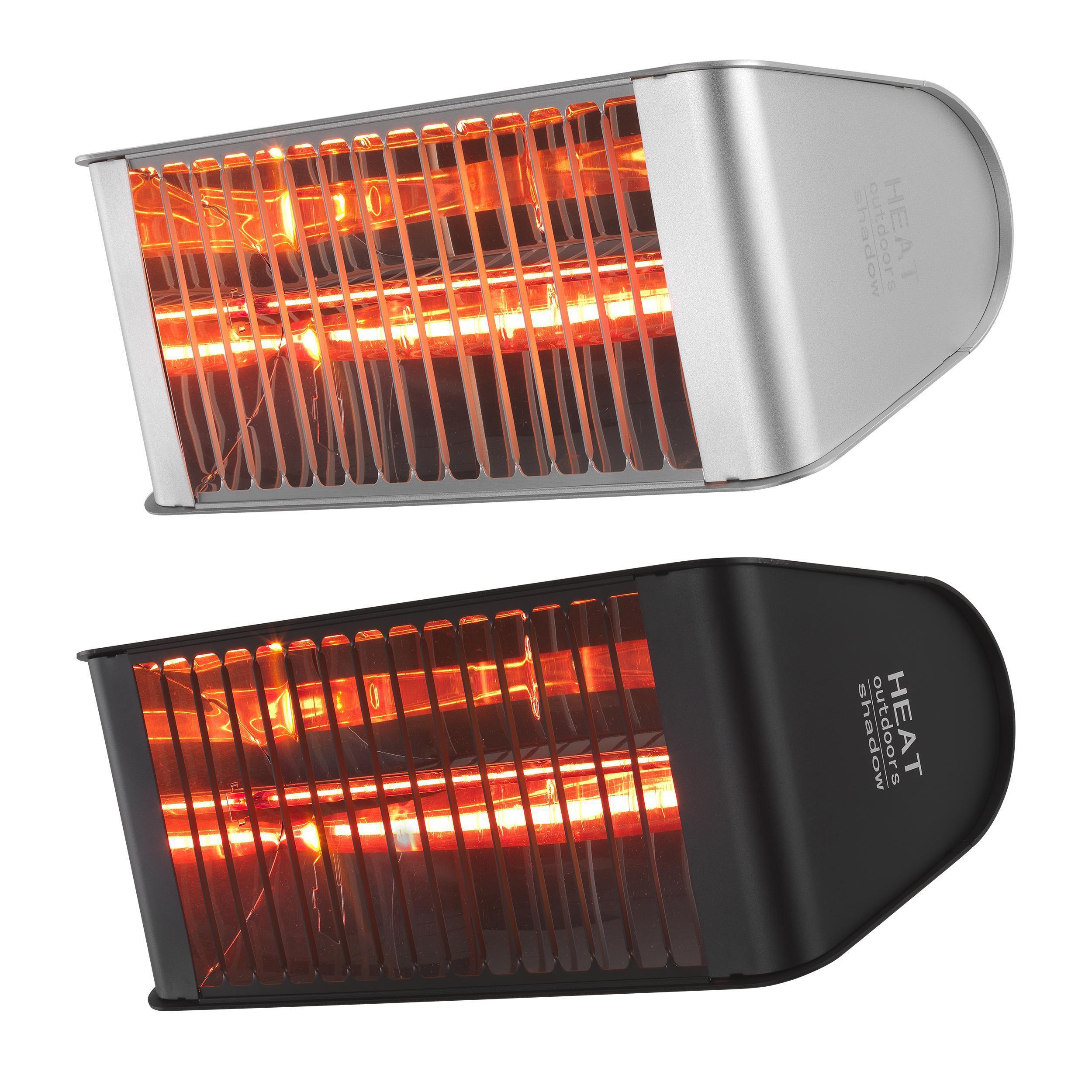

Colour
Remote Controlled
Call 01279 466500
for advice
Shadow Fatboy 2.4kW Heater Manual Download Data Sheet Shadow Fatboy 2.4kW Heater Manual Download Data Sheet Shadow Fatboy 2.4kW Heater Manual Download Data Sheet Shadow Fatboy 2.4kW Heater Manual Download Data Sheet

Need help?
book a free consultation

Fatboy 2.4kW Infrared Heater at a glance

Discover why Shadow Industrial infrared heaters are saving many companies over 90% of their energy consumption.

Dimensions

Dimensions
W: 55.5cm
H: 22cm
D: 21cm

Dimensions

Dimensions
W: 55.5cm
H: 22cm
D: 21cm

Dimensions

Dimensions
W: 55.5cm
H: 22cm
D: 21cm

Dimensions

Dimensions
W: 55.5cm
H: 22cm
D: 21cm

Coverage M2

Coverage M<sup>2</sup>
6m2 coverage

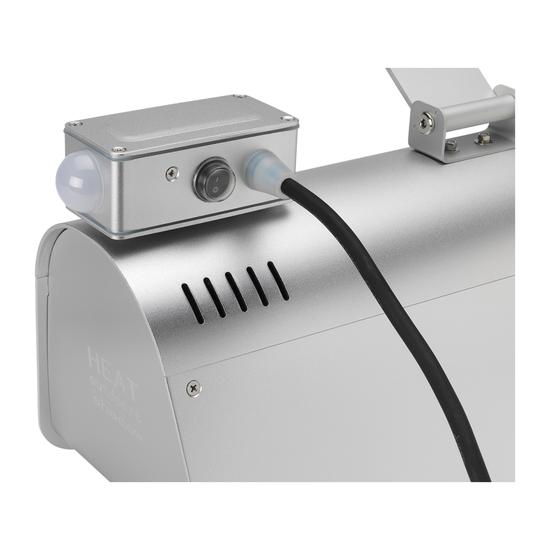

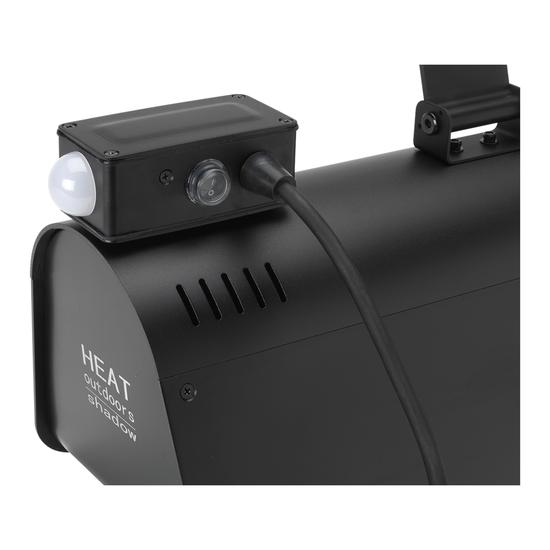

Remote Controlled

Remote Controlled
Adjust the heater's settings
with the included
remote control.

Remote Controlled

Remote Controlled
Adjust the heater's settings
with the included
remote control.

Warranty

Warranty
2 Years year warranty
direct from
manufacturer

Warranty

Warranty
2 years year warranty
direct from
manufacturer

Warranty

Warranty
2 years year warranty
direct from
manufacturer

Warranty

Warranty
2 years year warranty
direct from
manufacturer
Full Details

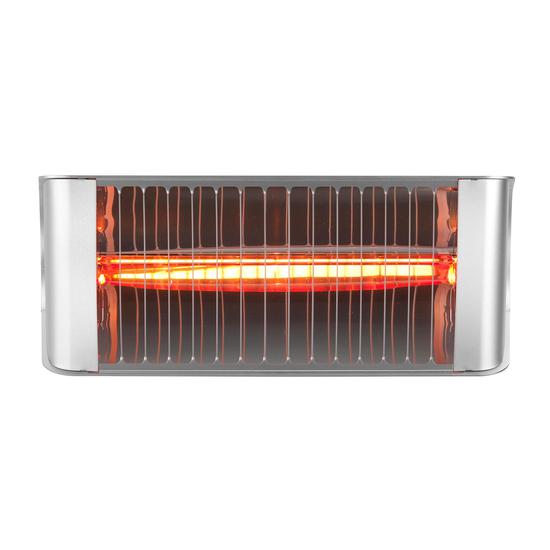

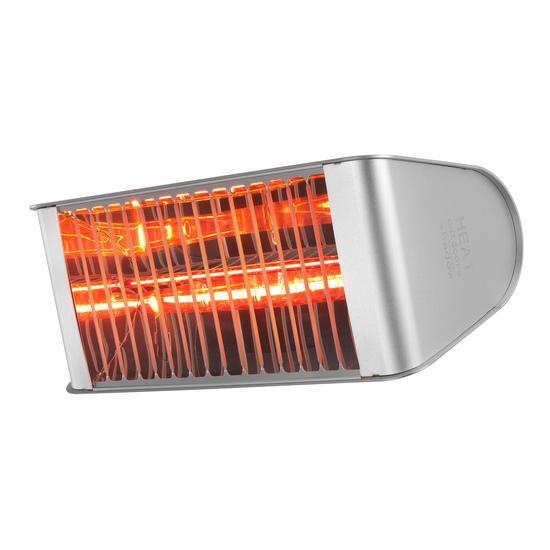

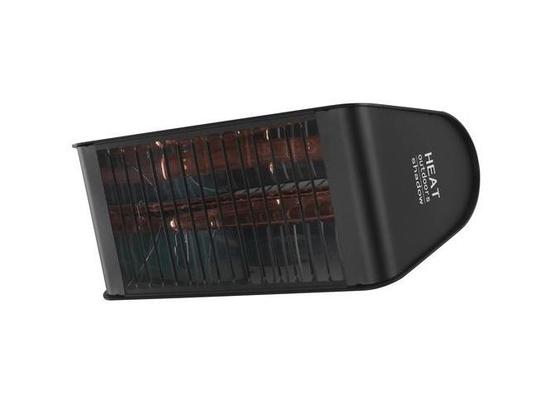

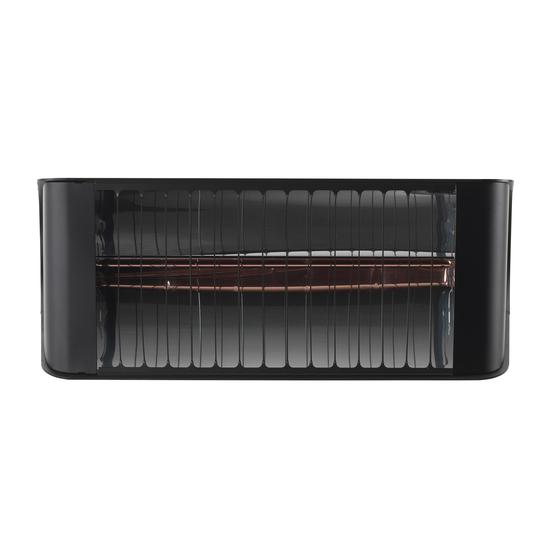

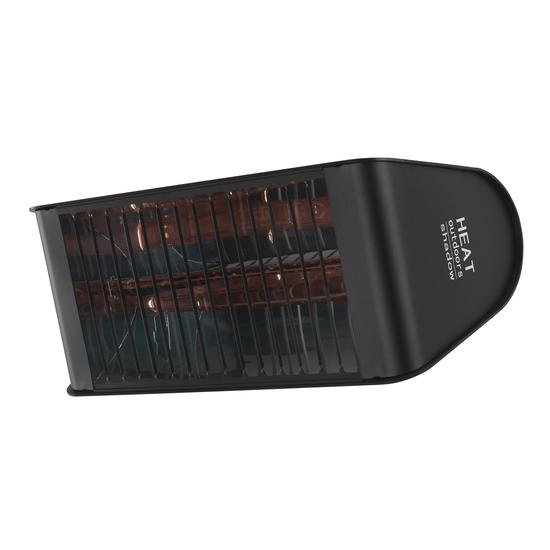

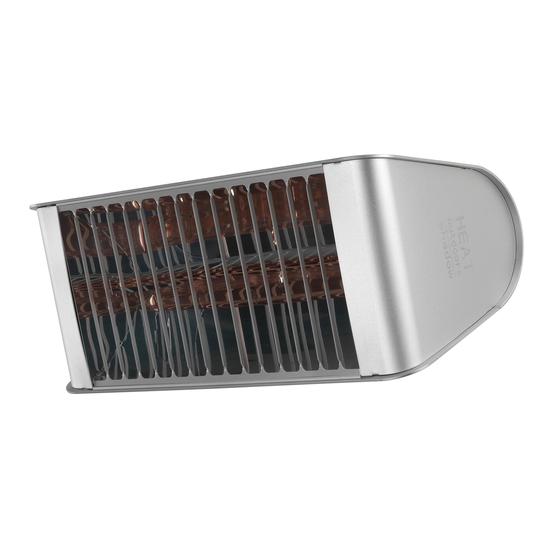

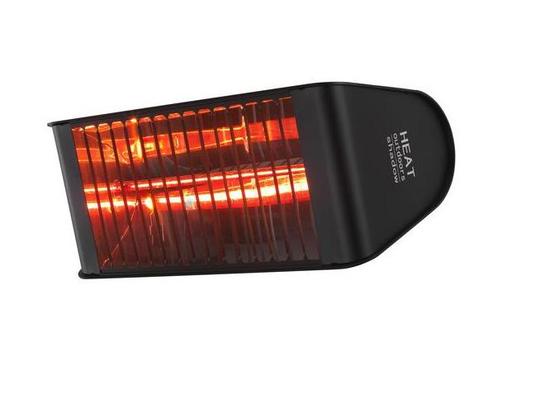

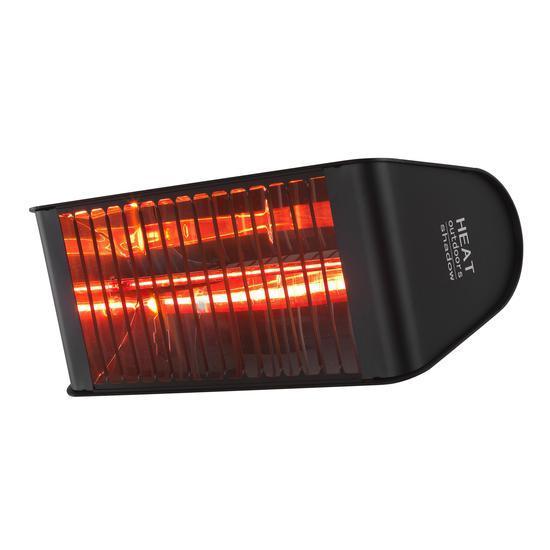

Shadow FatBoy 2.4kW Infrared Heater

The Shadow FatBoy 2.4kW is a powerful single-lamp short-wave infrared heater, designed to deliver high-performance heating in industrial and commercial environments. Featuring an oversized parabolic reflector, it provides exceptional heat output from a single 2.4kW Ultra Low Glare lamp.

Designed for applications where powerful, targeted heating is required, the Shadow FatBoy delivers impressive performance even when mounted at heights of up to 3.5m, making it ideal for a range of industrial settings.

The Shadow FatBoy is particularly suited to larger spaces or areas where installing multiple heaters may not be practical. Its short-wave infrared technology heats people and objects directly rather than the surrounding air, providing effective warmth even in draughty or exposed environments. With an IP65 rating, the heater is also protected against dust and water ingress, making it suitable for a variety of indoor and outdoor applications.

Performance Features

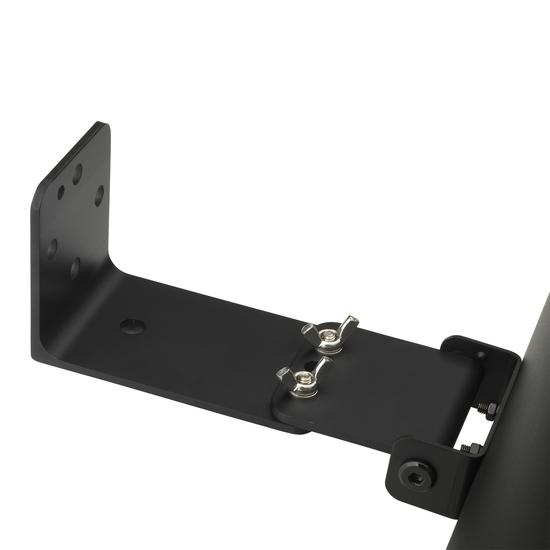

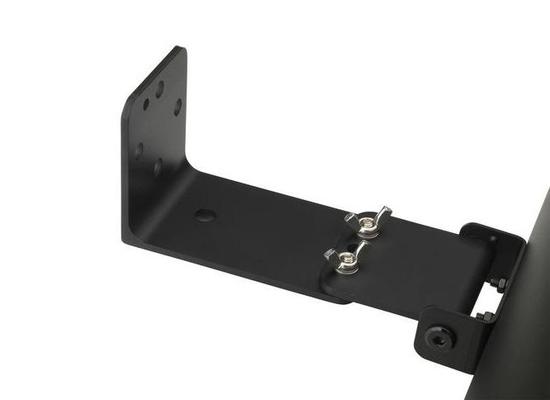

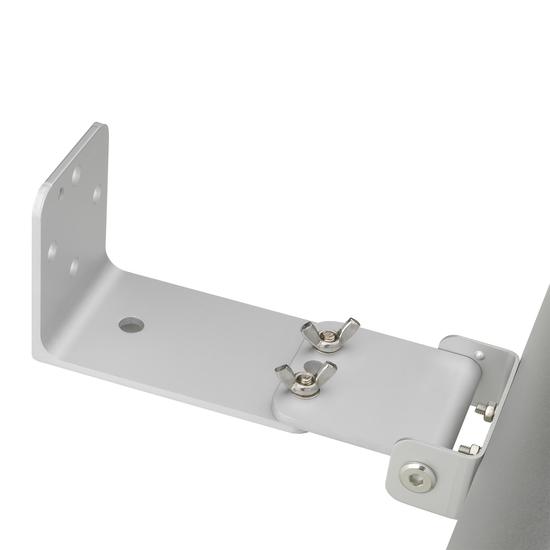

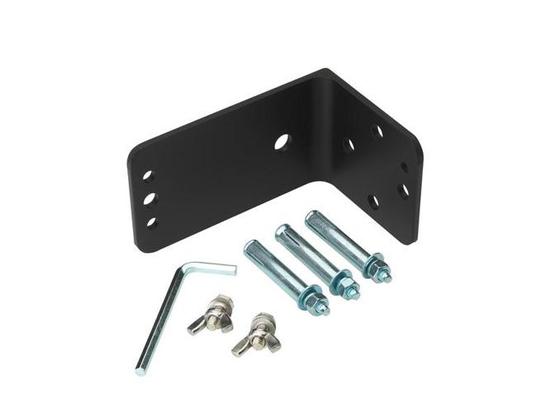

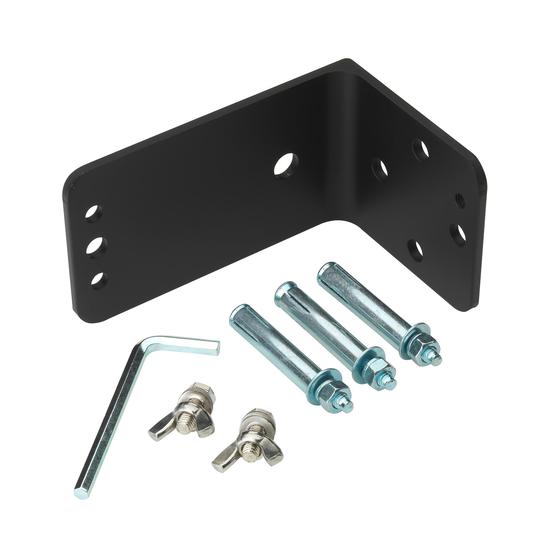

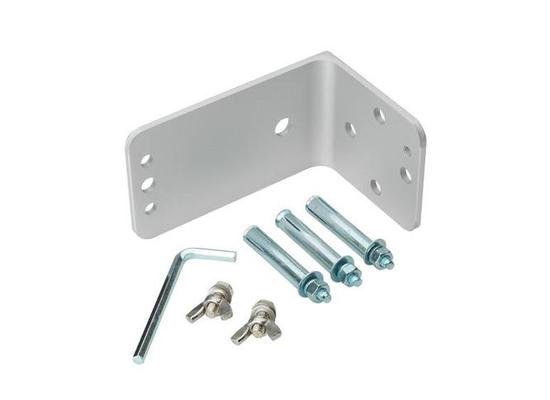

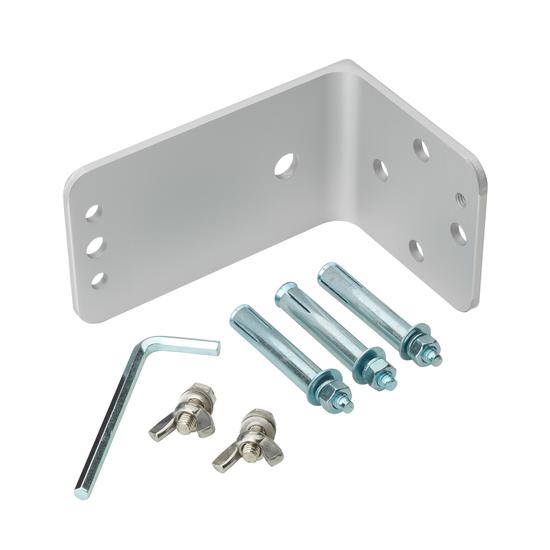

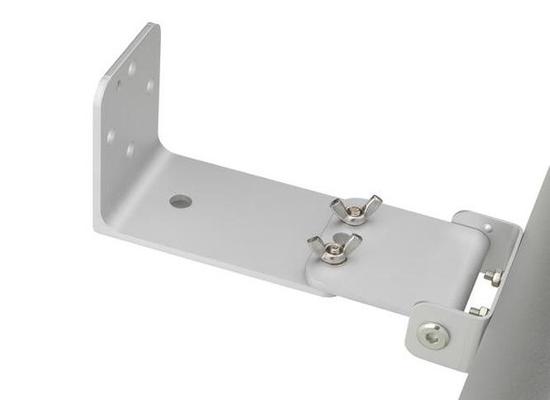

  • L shape mounting bracket and fixings pack included with purchase.
  • Long life exclusive Ultra Low Glare infrared lamp with 5,000 to 7,000 hours life.
  • Equipped with 1.8m of electrical cable and UK plug (maximum allowed under EU regulations)
  • Scientifically designed extra large parabolic reflector for massive efficiency and power
  • EasyFit fast lamp changing system
  • Safety guard
  • The heater must be mounted in a well-ventilated area. There must be at least a 0.5m clearing between the heater and ceilings / roofs
  • There must be at least a 0.5m clearing between the heater and adjacent walls / fabrics
  • There must be at least a 1.8m clearing between the bottom edge of the heater and the floor

When using a Fatboy heater in commercial premises or other locations where the heaters are used continuously for very long periods of time then it is advisable to consult an electrician. A 2.4kW heater used for very long periods of time may need to be hard wired into a 20A fused spur rather than using the standard 13A socket.

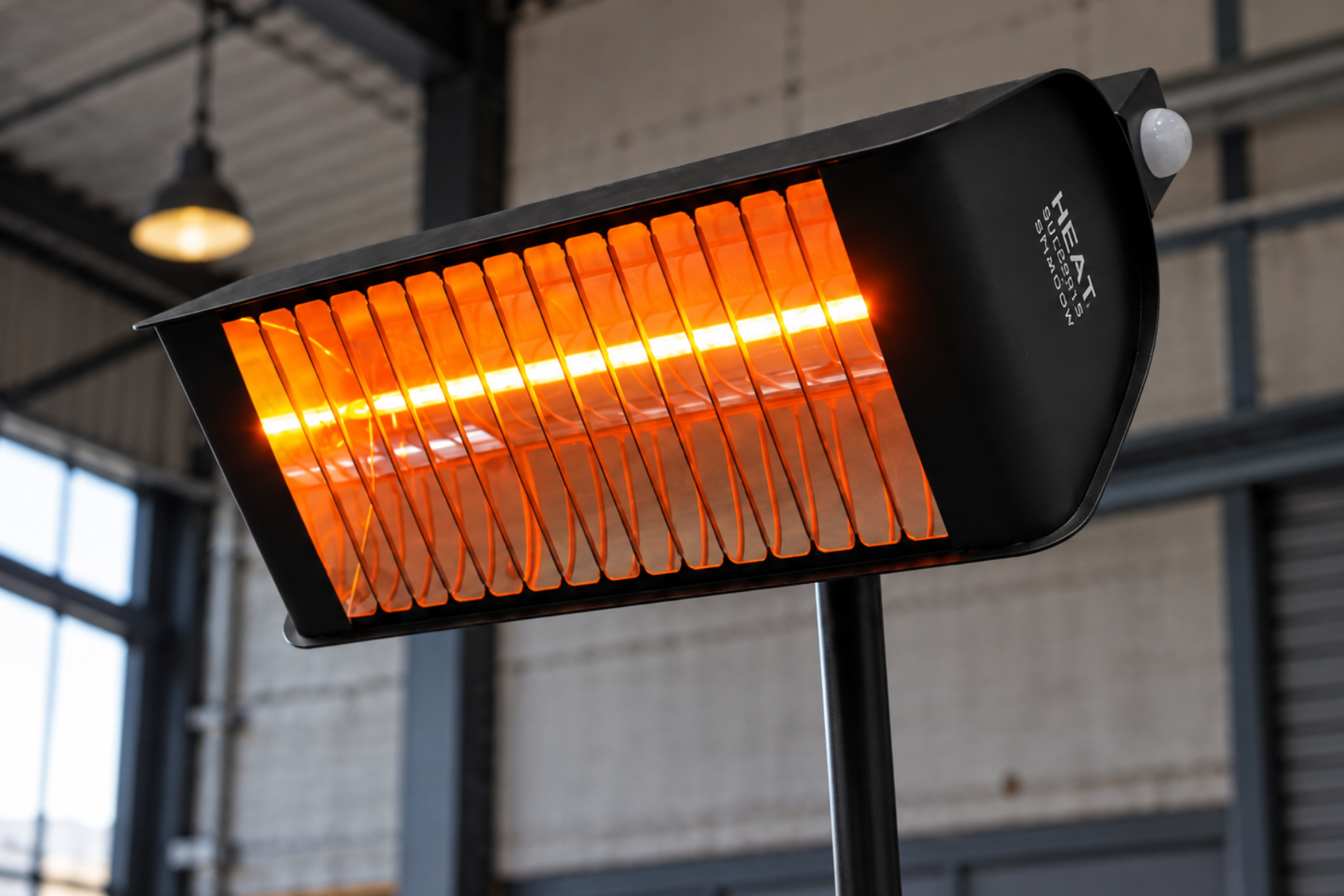

Shadow FatBoy 2.4kW Infrared Heater in situ

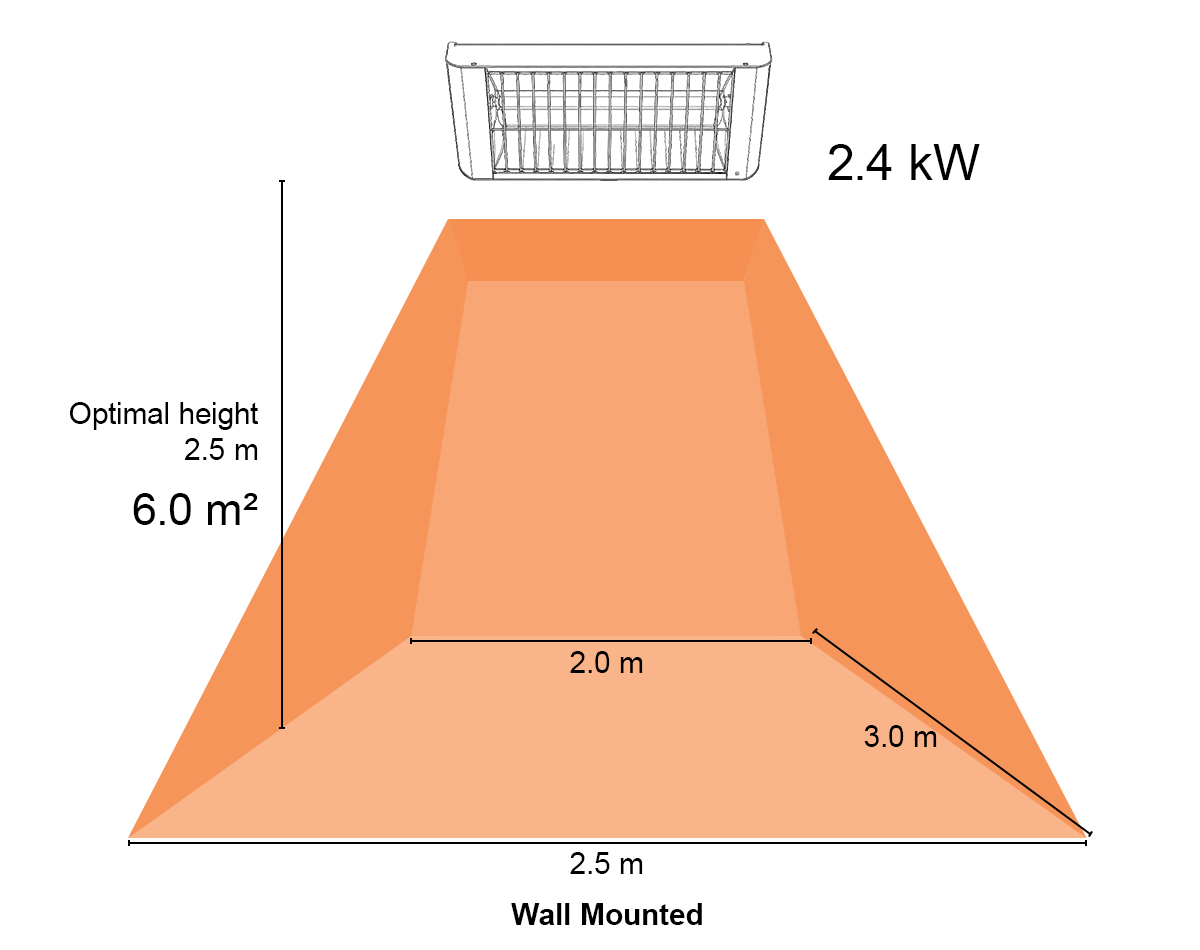

Heater Coverage

Typical coverage areas obtained from the 2.4kW Shadow Fatboy

2.4kW Infrared Coverage Infographic

Acceptable coverage is achieved when the heater is mounted within ±15% of the optimal mounting height. Increasing mounting height widens the heat spread but reduces heat intensity, while lower mounting heights increase heat intensity over a smaller area.


Technical Specification

Power (kW) 2.4 2.4
Dimensions (W) mm 55.5cm 55.5cm
Dimensions (H) mm 22cm 22cm
Dimensions (L) mm 21cm 21cm
Coverage (M sq.) 6 6
Voltage (V) 220 - 240V 220 - 240V
Weight (kg) 4.5 4.5
Warranty (years) 2 Years 2 years
Ingress Protection IP65 IP65
Cable Length 1.8m 1.8m
Lamp Warranty Not Covered Not Covered
Remote Controlled - Yes
