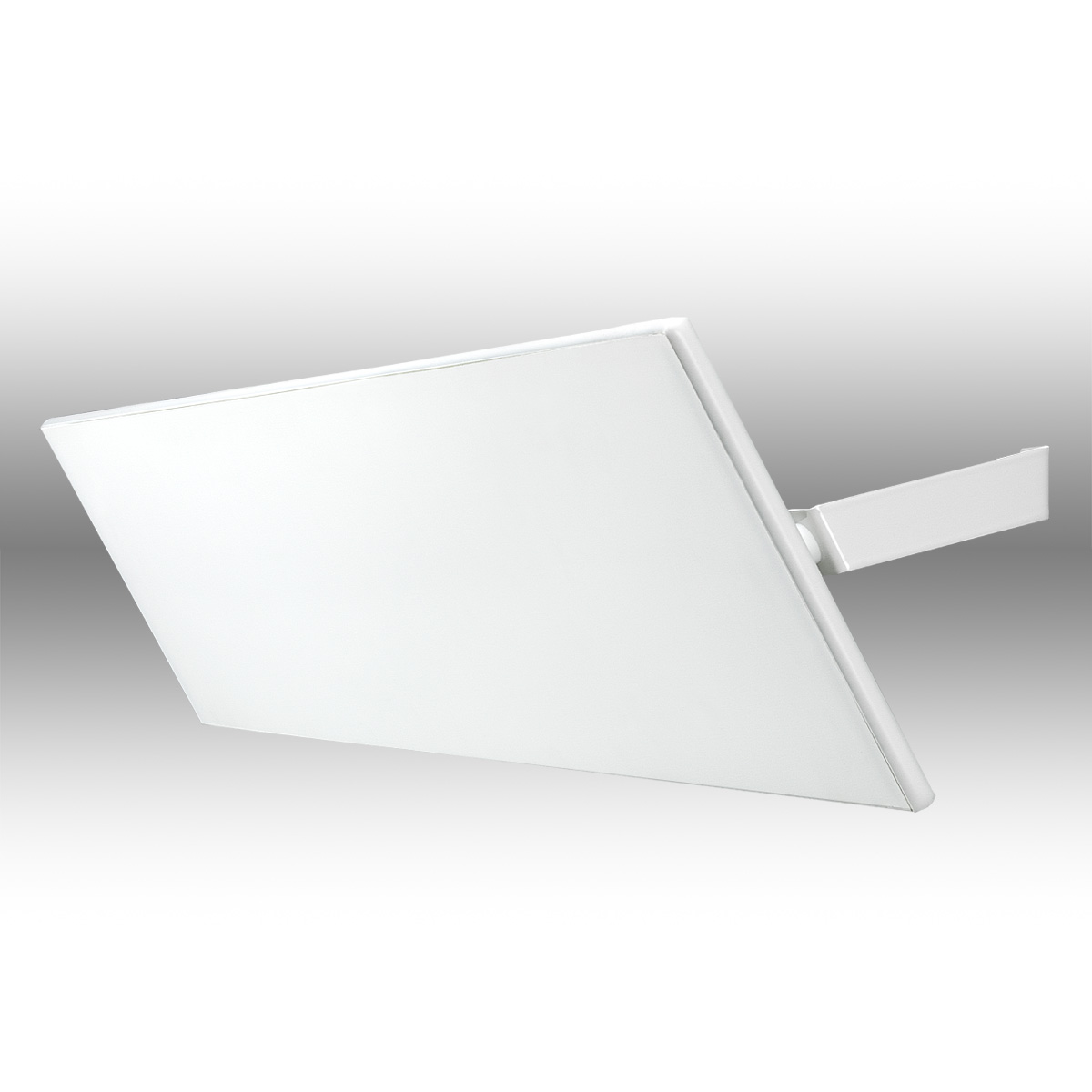

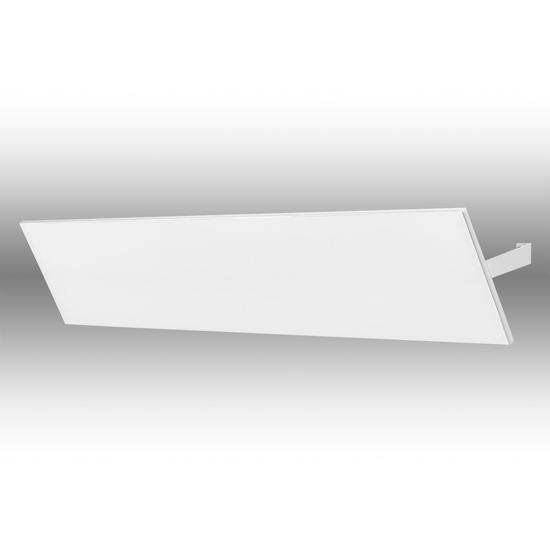

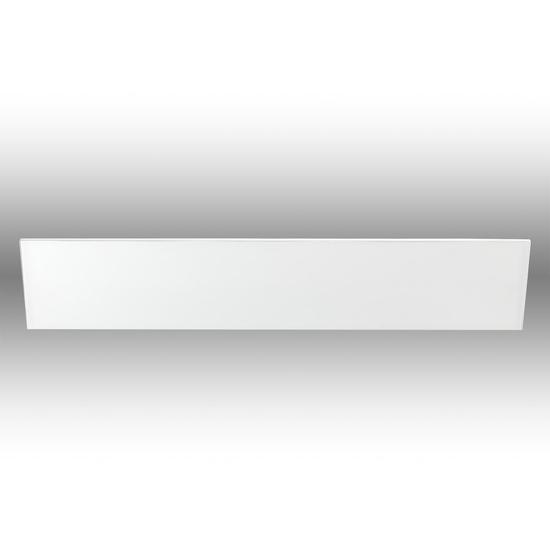

Shadow Crystal 600W Infrared Glass Panel Heater - White

Shadow Crystal 600W Infrared Glass Panel Heater - White

from £269.00 + VAT
In stock
New
Sale
Sold out
Pre-order
code: 905002
RRP: £0.00
from £269.00 + VAT
from £322.80 inc. VAT
Call 01279 466500
for advice
Shadow Crystal Manual

Need help?
book a free consultation

Crystal 600W Infrared Glass Panel Heater - White at a glance

Discover why Shadow Industrial infrared heaters are saving many companies over 90% of their energy consumption.

Dimensions

Dimensions
W: 930
H: 190
D: 10

Dimensions

Dimensions
W: 930
H: 190
D: 10

Dimensions

Dimensions
W: 930
H: 190
D: 10

Warranty

Warranty
3 Years year warranty
direct from
manufacturer

Install the Shadow Crystal infrared panel heaters on the ceiling or on the wall. The heating side of the panel heats up to 180 °C, evenly radiating heat rays and heating up the surrounding surfaces which then use the accumulated heat to warm up the air.

This heating method has many advantages over the other types, such as increased area for heat transfer, occurrence of rotating columns of dust limited to a minimum, generally slower cooling of the room, minimum heating of air under the ceiling or significantly reduced drying of air. All these features in turn contribute to the conservation of electricity, thus ranking infra-red heating among the most convenient and at the same time energy efficient methods of modern heating.

Heating by means of infra-red radiation is highly effective and reasonably economical. It is currently considered to be the most effective type of heating. Heat transfer by means of infra-red rays causes that 93% of the radiated heat is absorbed by the floor, walls and objects in the room, which then warm up the surrounding air.

Coverage areas

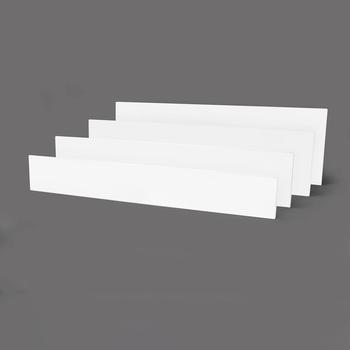

Model number Model name Current (A) Dimensions (mm) Coverage* (sqm)
905001 Shadow Crystal Infrared Glass Panel Heater - White 400W 1.7 930 x 130 x 10 6
905002 Shadow Crystal Infrared Glass Panel Heater - White 600W 2.6 930 x 190 x 10 9
905003 Shadow Crystal Infrared Glass Panel Heater - White 800W 3.5 930 x 240 x 10 12
905004 Shadow Crystal Infrared Glass Panel Heater - White 1000W 4.3 930 x 305 x 10 15

*Coverage areas are the maximum recommended but are subjective as different people feel warm at different levels of heat. They also depend upon many factors including the mounting height, ceiling height, airflow and the room insulation efficiency.

Minimum Installation Distances - Wall Mounted option

Shadow Crystal wall mounting distances

Minimum recommended distances

A Minimum ceiling mounting distance - 80mm

B Distance from the wall - 50mm

C Distance from other objects - 500mm

D Minimum distance from the floor - 1800mm

Shadow Crystal in apartment

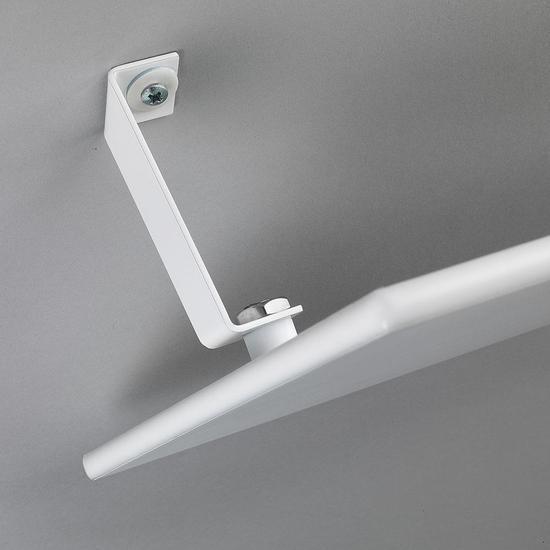

Minimum Installation Distances - Ceiling Mounted option

Shadow Crystal ceiling mounting distances

Minimum recommended distances

A Minimum ceiling mounting distance - 100mm

B Distance from the wall - 50mm

C Distance from other objects - 500mm

D Minimum distance from the floor - 2200mm

Shadow Crystal ceiling mounting in loft conversion

Technical Specification

  Shadow Crystal 600W - Wall Mounted
#905002
Shadow Crystal 600W - Ceiling Mounted
#905002C
Shadow Crystal 600W - Ceiling Hanging
#905002H
Dimensions (W) mm 930 930 930
Dimensions (H) mm 190 190 190
Dimensions (L) mm 10 10 10
Voltage (V) 220-240 220-240 220-240
Weight without guard (kg) 3.4 3.4 3.4
Warranty (years) 3 Years 3 Years 3 Years

Downloads

Shadow Crystal 600W - Wall Mounted

Shadow Crystal Manual
