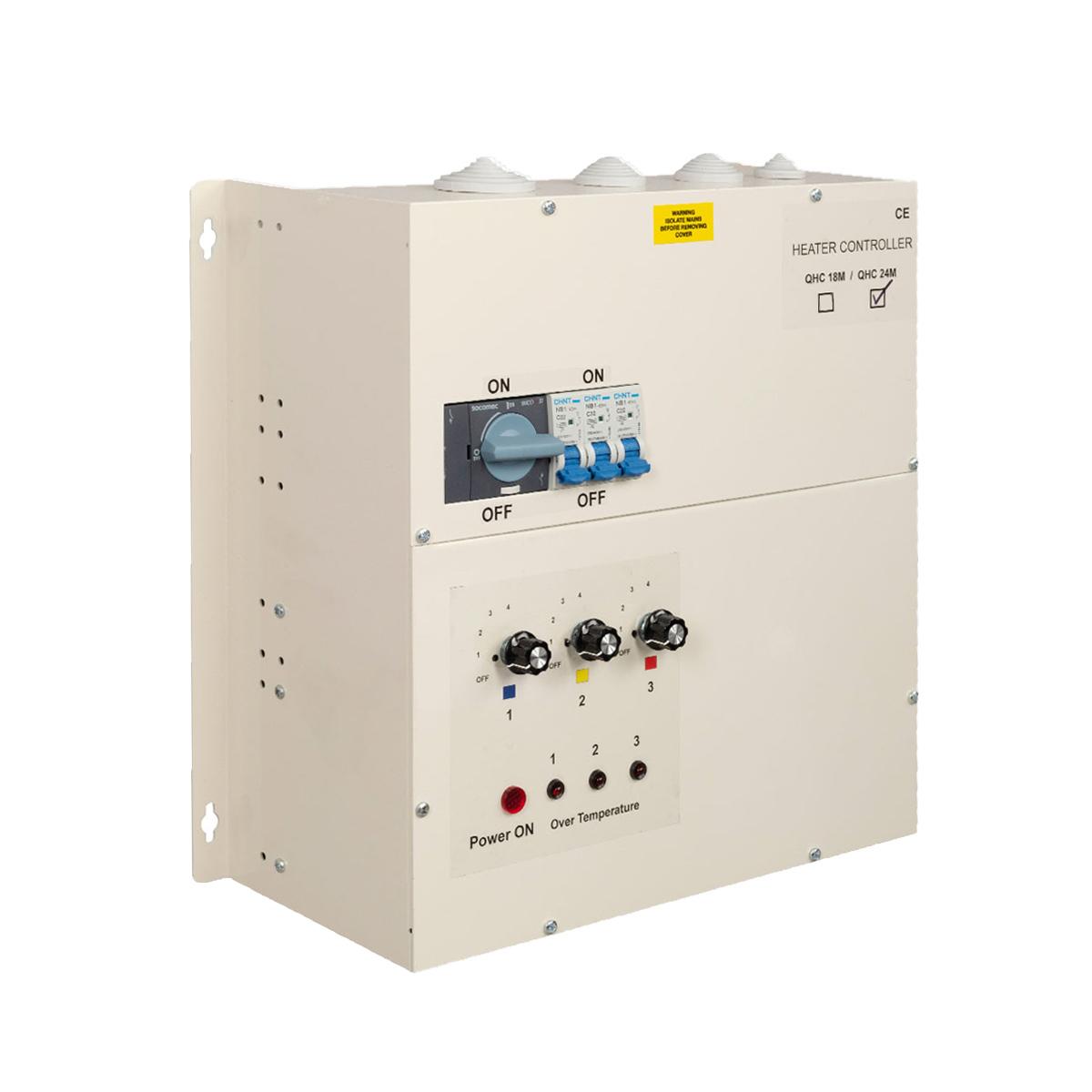

24kW 3-Zone Industrial Heater Controller

from £1174.00 + VAT
In stock
Sold out
code: 901255
RRP: £0.00
from £1174.00 + VAT
from £1408.80 inc. VAT
Call 01279 466500
for advice

Need help?
book a free consultation

24kW 3-Zone Industrial Heater Controller at a glance

Discover why Shadow Industrial infrared heaters are saving many companies over 90% of their energy consumption.


1 Year year warranty
direct from
Full Details

24kW Controller - QHC24 - (High Power)

Optional Devices for use with your 24Kw controllers.

Depending on the Electronic Controller you are using you are able to operate up to three zoned areas & connect up to four 2 Kwatt or six 1.5 Kwatt infrared heaters per zone. The power setting can be varied and this will affect each zone i.e., whatever setting the controller is set to then this is the power delivered to each zone. However each zone can be manually isolated from the others through the three output circuit breakers. This allows the user to decide how many zones are to be ON.

When Motion Sensors are connected to the Electronic controllers, a specific area or zone can be automatically switched ON & OFF when there is no movement detected in that area. The QHC15 & QHC24 can have up to 3 zones and therefore can have 3 motion sensors connected.

Motion Sensor (PIR):

Using our PIR connected into the Electronic Controller, will improve the efficiency of the heaters. The PIR will detect the presence of people by their movement made in specific area or zone, when there is no movement detected after 4 minutes the power to that zone will be automatically turned OFF. The power will automatically be turned on again when another movement or person is detected.

If connected to a heater directly has a switching (max load) capacity of 2 Kwatts and the time is controlled by setting on the PIR only. (Remember never have the PIR facing the heaters as the heaters will remain on).

Remote Control 3 zone RF transmitter

3 Zone wireless RF transmitter used to control any of our remote controlled Industrial Heating controllers. The transmitter is available with either the wall mounted 3 Zone wireless transmitter or the portable hand held version.

Hard wired 3 zone Control module

Hard wired 3 zone control module used to control any of our standard Industrial Heating controllers

RF Remote Control System.
The benefit of the remote system is that you can turn your heaters ON or OFF and vary each of the 3 zones outputs up and down individually. Once the RF transmitter is in range of controller the range is 100M approx. The remote control system will only work on RF remote ready systems. If your controller has remote ready system? Then all that is require is the remote package which Includes as follows:

One RF transmitter can control 3 zones with any number of compatible controllers (receivers) and linked heaters which can be located up to 100m away from the transmitter.

you may already have outdoor heaters installed on your premises and you have no method of controlling your heaters. We offer a range of Controllers giving you Versatility, Conserves energy and Optimizes control.

Versatility: The most flexible intelligent heating control system available. Up to 24 1.0kw heaters can be run in 3 different zones by the one Controller.

Conserves energy: No waste of electricity the heat output can be controlled by user.

Optimizes control: comfortable working temperatures and can reduce running costs when used with a Motion detector (PIR). When there are no people detected in the area being heated the controller will turn off the heater thereby optimizing control. This can save you a lot compared to conventional heating systems.

Energy Efficient

High Power Industrial Infrared Heating

With a powerful capacity, the 24kW 3 Zone Industrial Heater Controller is a game-changer. Achieve three distinct heating zones, each with its own independent heating settings. Control different areas of your environment with precise temperatures and reduce energy wastage.

The 24kW controller brings unmatched versatility and precision to industrial settings.

Intelligent Sensors

The 24kW heater controller has integrated temperature sensors within each heating zone, which allows for real-time ambient temperature monitoring. This means that a consistent and comfortable temperature can be maintained across the facility.

When paired with a PIR motion detector, the efficiency of your heater will greatly improve. The PIR will detect people's movement in each zone to see whether that area is still in use. After 4 minutes, if there is no movement detected, the power to the zone will be automatically switched off. The heater will automatically turn back on if motion is detected. This heavily reduces the amount of energy wasted in your facility.

More Control, Less Waste

Our 24kW Industrial Heater Controllers can massively enhance the energy efficiency of your facility. Having each heater in each zone independent from the other means heat isn't wasted where it isn't needed, and when paired with a motion detector (PIR), your running costs are heavily reduced as you can automatically cut the power to zones that aren't being used.

The 24kW Industrial Heater Controllers allow you to fully control your heating experience, creating the best and most comfortable working environment.

Technical Specification

Voltage (V) 230V or 400V 3 phase
Warranty (years) 1 Year

Preconfigured before delivery

Tell us your controller requirements and we'll preconfigure everything for you.

When you heating solution arrives, it is setup and ready for installation. Control systems are factory setup according to your specific needs. All you need is a competent electrician to install the heaters and controllers in your specified locations.

Book a consultation
