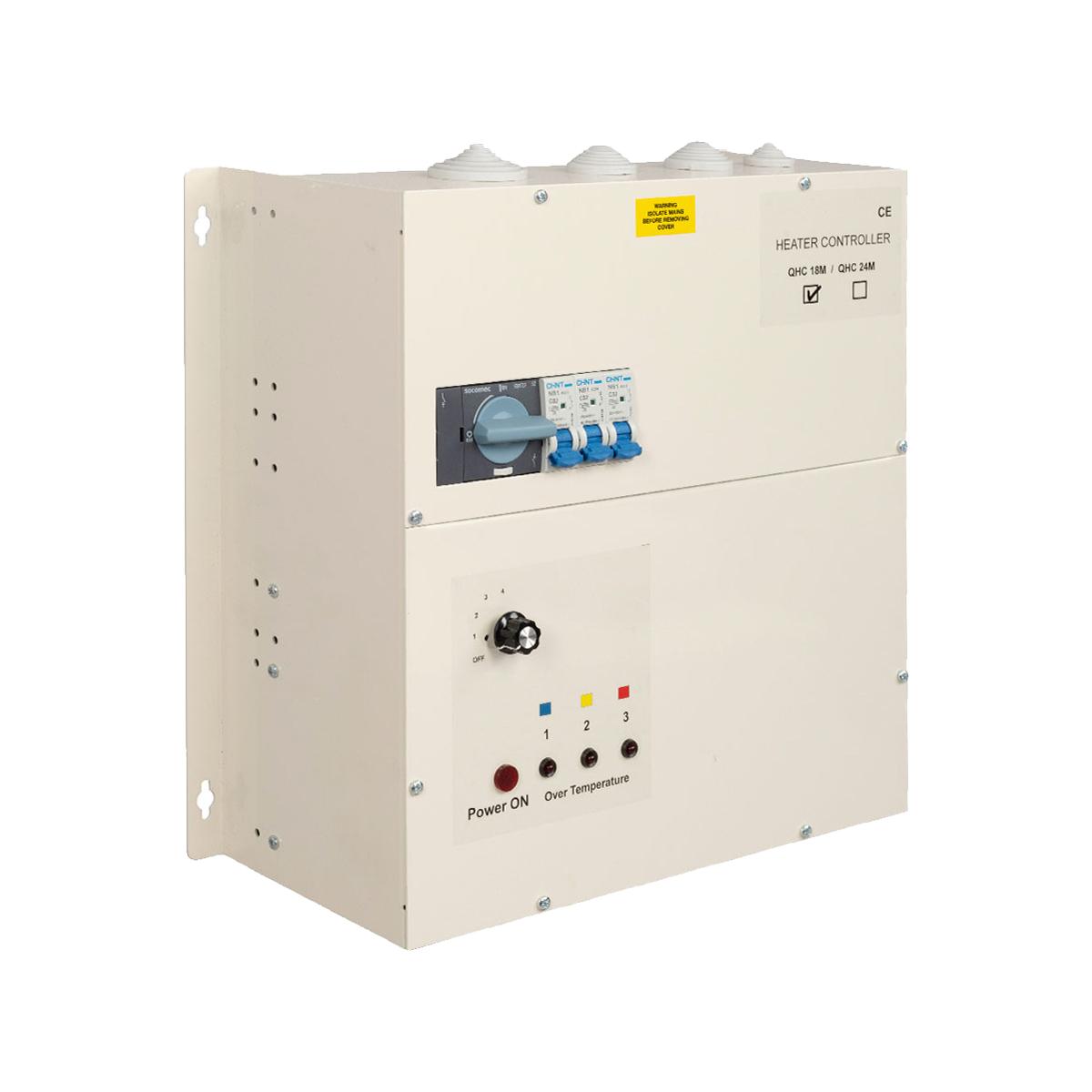

18-27kW Industrial Heater Controller (standard single dial)

from £849.00 + VAT
In stock
Sold out
code: 901252
RRP: £0.00
from £849.00 + VAT
from £1018.80 inc. VAT
Call 01279 466500
for advice
Shadow Industrial 18kW Heater Controller Manual Shadow Industrial 24kW Heater Controller Manual

Need help?
book a free consultation

Full Details

18kW Controller QHC18 (Medium Power)

Optional Additional Devices for use with your 18Kw Controller.

Depending on the Electronic Controller you are using you are able to operate up to three zoned areas & connect up to three 2 Kwatt or four 1.5 Kwatt infrared heaters per zone. The power setting can be varied and this will affect each zone i.e., whatever setting the controller is set to then this is the power delivered to each zone. However each zone can be manually isolated from the others through the three output circuit breakers. This allows the user to decide how many zones are to be ON.

Motion Sensor (PIR):

Using our PIR connected into the Electronic Controller, will improve the efficiency of the heaters. The PIR will detect the presence of people by their movement made in specific area or zone, when there is no movement detected after 4 minutes the power to that zone will be automatically turned OFF. The power will automatically be turned on again when another movement or person is detected.

If connected to a heater directly has a switching (max load) capacity of 2 Kwatts and the time is controlled by setting on the PIR only. (Remember never have the PIR facing the heaters as the heaters will remain on).

Remote Control 3 zone RF transmitter

3 Zone wireless RF transmitter used to control any of our remote controlled Industrial Heating controllers. The transmitter is available with either the wall mounted 3 Zone wireless transmitter or the portable hand held version.

Hard wired 3 zone Control module

Hard wired 3 zone control module used to control any of our standard Industrial Heating controllers

Remote Control System.
The benefit of the remote system is that you can turn your heaters ON or OFF and vary each of the 3 zones outputs up and down individually. Once in range of controller the range is 30M approx. The remote control system will only work on remote ready system. (see your supplier). If your controller has remote ready system? Then all that is require is the remote package which Includes as follows:

you may already have outdoor heaters installed on your premises and you have no method of controlling your heaters. We offer a range of Controllers giving you Versatility, Conserves energy and Optimizes control.

Versatility: The most flexible intelligent heating control system available. Up to 18 1.0kw heaters can be run in 3 different zones by the one Controller.

Conserves energy: No waste of electricity the heat output can be controlled by user.

Optimizes control: comfortable working temperatures and can reduce running costs when used with a Motion detector (PIR). When there are no people detected in the area being heated the controller will turn off the heater thereby optimizing control. This can save you a lot compared to conventional heating systems.

Energy Efficient

High Power Industrial Infrared Heating

The Single Dial Industrial Heater Controllers allow you to achieve a versatile heating performance across your facility. Control up to three zones, each with individual heating settings to fully customise your heating set-up and achieve precise temperatures for each zone.

A customisable heating set-up allows you to achieve optimal temperatures across all zones in your industrial setting.

Intelligent Sensors

The Single Dial Industrial Heater Controllers can detect the ambient temperatures in each zone and adjust them automatically so you maintain a consistent and comfortable working temperature at all times.

Connecting your controller to a PIR motion detector allows your facility to stay on top of energy efficiency and minimise wastage. The PIR motion detector will continuously detect for movement in each zone if no movement has been detected after 4 minutes, the power for the heater in that zone will atomically shut off. Once someone moves to that zone, the power will turn back on.

More Control, Less Waste.

The Single Dial Industrial Heater Controllers allow you to gain more control over how you heat your facility. Each zone can be heated in different ways, such as heating at different temperatures if there are specific needs for each zone. By taking control of your heating arrangement, you can achieve the most optimal heating performance for your precise requirements and unmatched flexibility.

Heating to your exact needs means that you can minimise wastage and energy consumption.

Technical Specification

  18kW Heater Controller (standard)
24kW Heater Controller (standard)
27kW Heater Controller (standard)
Voltage (V) 230V or 400V 3 phase 230V or 400V 3 phase 230V or 400V 3 phase


18kW Heater Controller (standard)

Shadow Industrial 18kW Heater Controller Manual

24kW Heater Controller (standard)

Shadow Industrial 24kW Heater Controller Manual

Preconfigured before delivery

Tell us your controller requirements and we'll preconfigure everything for you.

When you heating solution arrives, it is setup and ready for installation. Control systems are factory setup according to your specific needs. All you need is a competent electrician to install the heaters and controllers in your specified locations.
