from £2509.00
+ VAT
The Shadow 13.5kW and 18kW Industrial Heater Packs (3 Phase Only) have been expertly engineered to provide everything you need for a high-performance industrial heating solution. Combining advanced infrared heater technology with intelligent multi-zone control, these packs deliver instant, targeted heat without wasted energy.
Designed specifically for large industrial environments with 3-phase electrical supply, this system allows you to heat occupied areas within large spaces, keeping energy costs low while maintaining comfort.
Important:This system is 3 phase only and must be installed on a compatible industrial electrical supply.

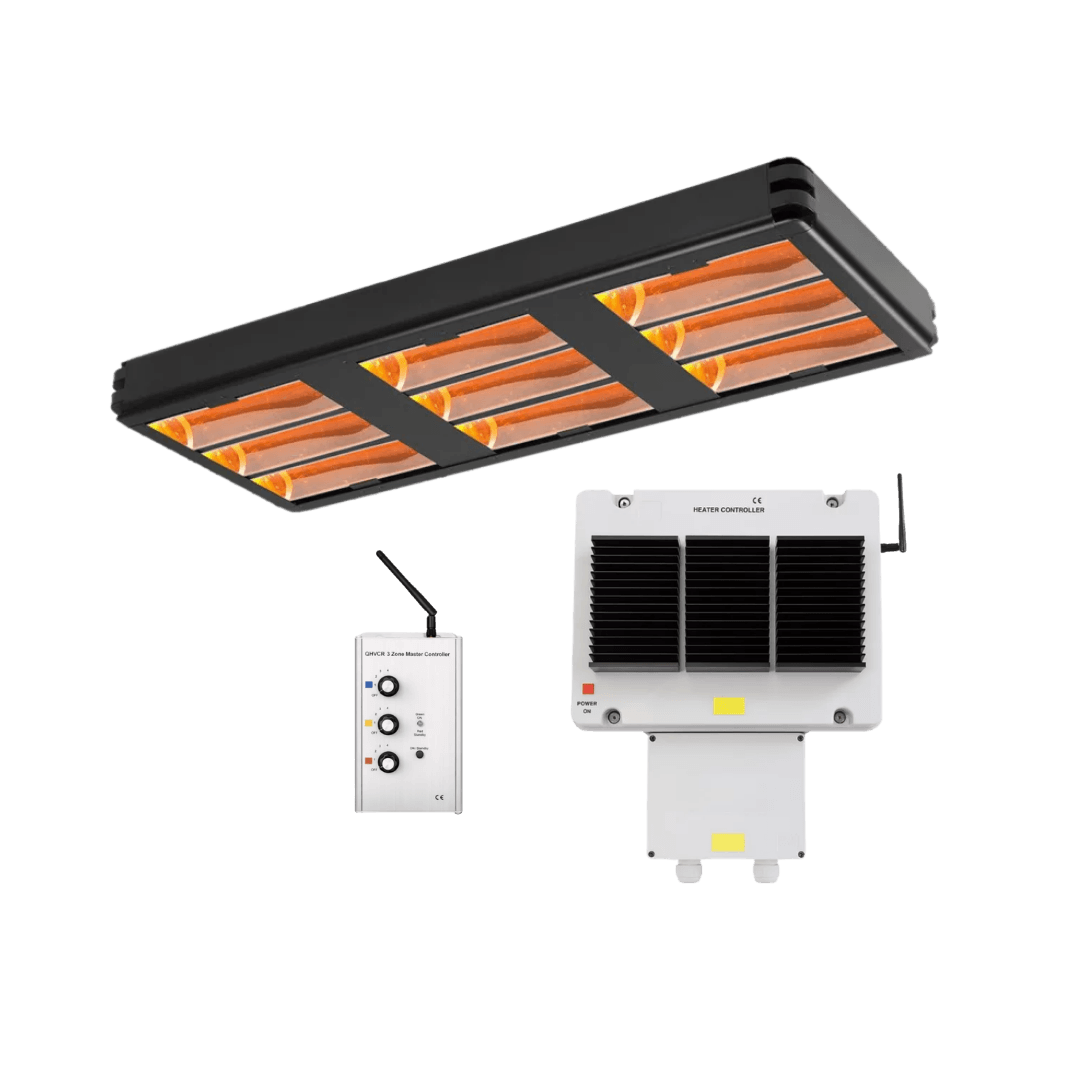

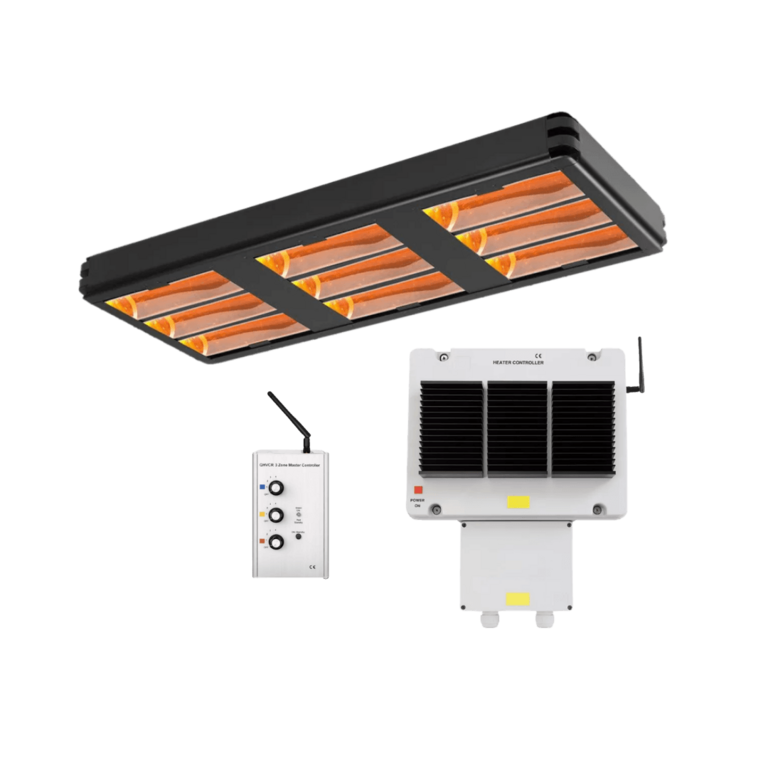

This industrial heater pack includes everything required for a fully integrated heating system:

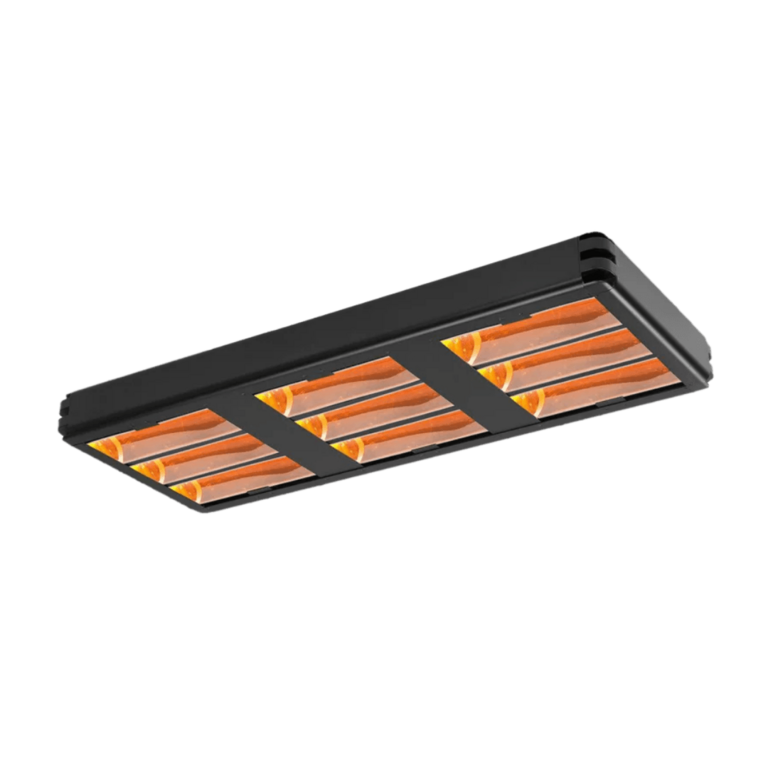

1 x Shadow 13.5kW or 18kW Industrial Infrared Heater
The Shadow 13.5kW or 18kW Industrial Infrared Heater delivers powerful heat almost instantly, effectively warming people and objects within its coverage area, making it ideal for large open spaces where rapid heating is essential.

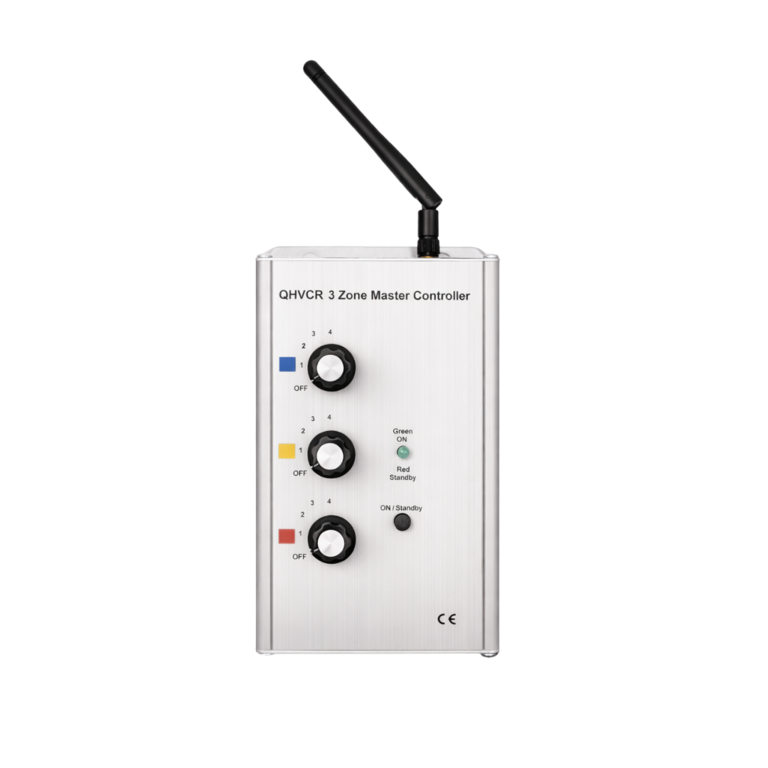

1 x 3 Zone Master Controller (Wall Mounted Transmitter)

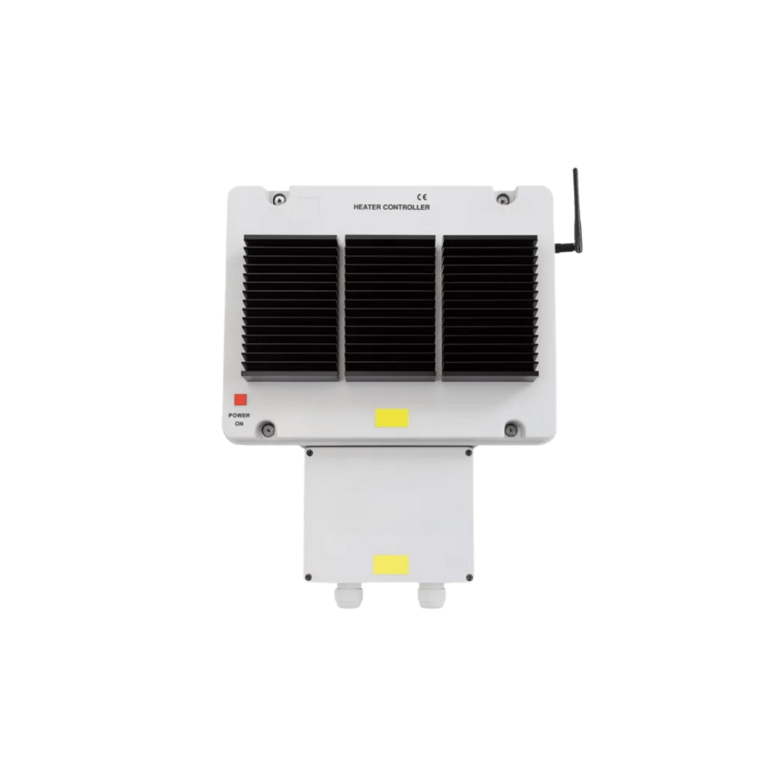

1 x 18kW Remote Variable Heater Controller (Receiver) - 3 Phase Only (for zoned wireless control)
These components are designed to work seamlessly together, delivering a reliable and scalable heating solution for large spaces.
Please note: This pack allows control of one zone only. To manage additional zones, extra receivers will need to be purchased.
Length 1292mm
Width 525mm
Depth 184mm
Typical coverage areas obtained from the 13.5kW and 18kW models
The Shadow Industrial Heater range is the perfect option to heat large industrial or warehouse spaces. Perfect for assembly lines in factories or picking and despatch areas in warehouses.
Heating large or difficult to heat buildings generally requires high power and energy efficient heating solutions. The Shadow Industrial Heater is just that and possesses all the necessary characteristics to make it the best choice for large spaces.
The Shadow Infrared Industrial Heaters excels at taking no time at all to produce truly impressive amounts of heat and warm up people and objects within its coverage area, an important factor when dealing with large open spaces.

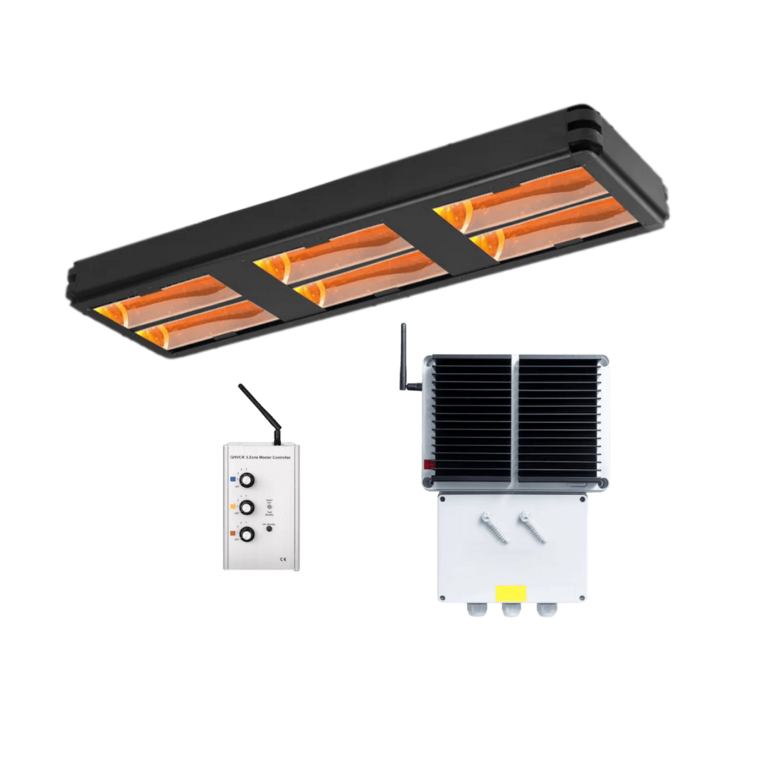

The three phase version (415v) is available in 9kW, 12kW, 13.5kW and 18kW sizes, the perfect solution for those customers that require more heat and more power.
The short-wave infrared our heaters operate, cuts through airflow to directly target the surrounding objects and people.
This is different to gas heaters, where the heat will rise and result in much of the heat being wasted.
Our industrial infrared heaters allow businesses to instantly achieve consistent warmth throughout their environment without any of the heat being wasted through an open door. Having minimal wastage means that businesses are using their energy on only the areas they need. Adjusting the heat output allows businesses to avoid overheating areas and optimise their energy usage.
Zoning is another way of maximising energy efficiency as businesses can have the heater automatically switch off when an area becomes unoccupied, helping them avoid unnecessary energy wastage.
| Power (kW) | 13.5 | 18 |
|---|---|---|
| Dimensions (W) mm | 525 | 525 |
| Dimensions (H) mm | 111 | 111 |
| Dimensions (L) mm | 1292 | 1292 |
| Coverage (M sq.) | 66.08 | 85.09 |
| Phase supply | 3 Phase | 3 Phase |
| Lamps x power (kW) | 9 x 1.5 | 9 x 2 |
| Voltage (V) | 220-240 | 220-240 |
| Current per phase (A) | 20 | 26 |
| Min. height from floor (cm) | 500 | 600 |
| Min. distance from ceiling (cm) | 25 | 25 |
| Min. distance from side wall (cm) | 350 | 400 |
| Weight (kg) | 16 | 16 |
| Warranty (years) | 2 | 2 |
| Lamp Length (mm) | 382 | 382 |
