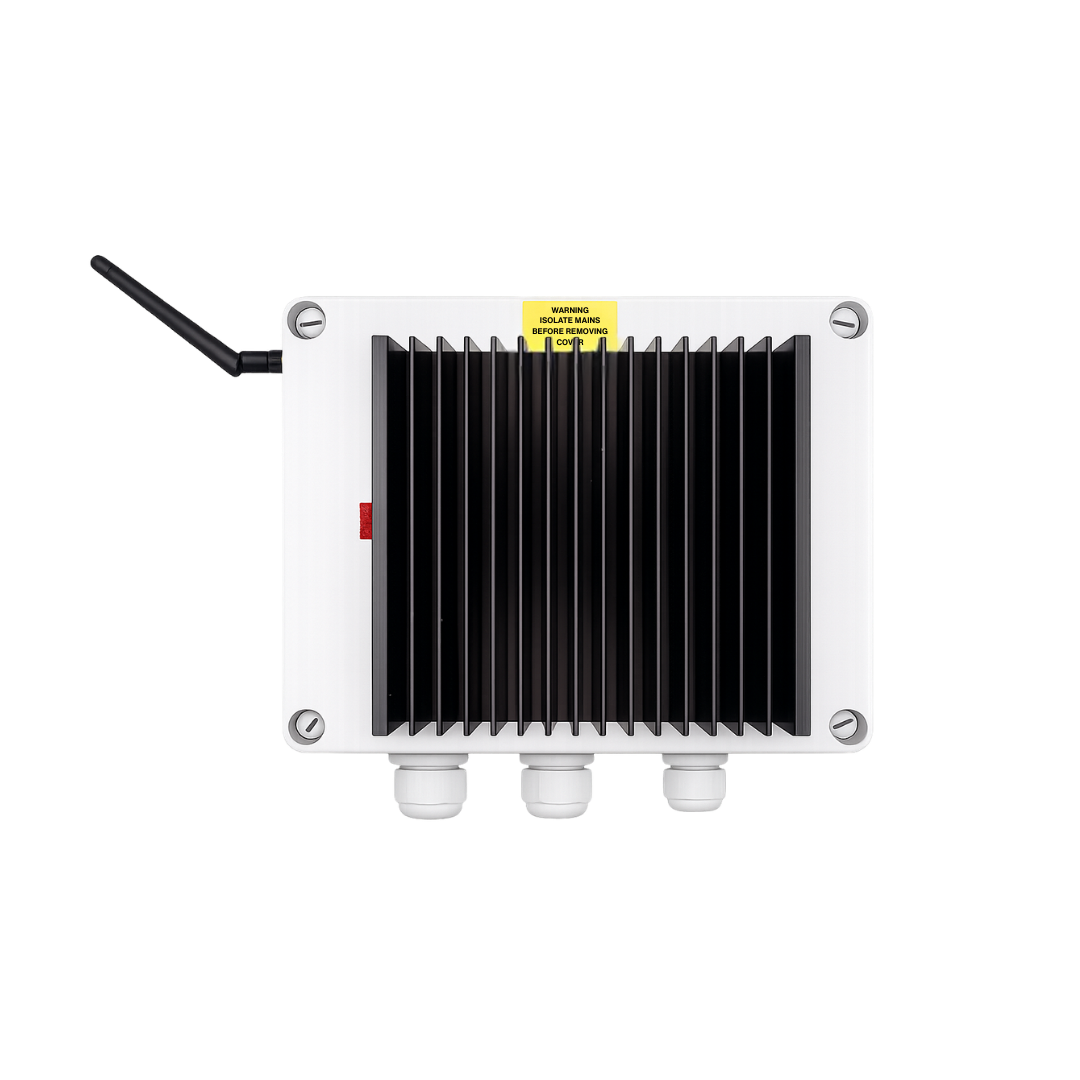

The 9kW and 9.6kW Remote Heater Controllers are wireless RF receivers designed to control the power supply to infrared heaters with a maximum load capacity of 9kW or 9.6kW, depending on the model. These receivers pair with the 3-Zone Remote Master Transmitter, allowing heaters to be grouped and controlled across three independent heating zones.
Multiple receivers can be assigned to the same zone, provided they are within the 100 metre RF transmission range of the transmitter. This allows several heaters to be controlled simultaneously within a designated zone, making the system ideal for larger spaces or buildings with multiple heating areas.
This device is compatible with the wall mounted 3 Zone wireless transmitter or the portable hand held version.

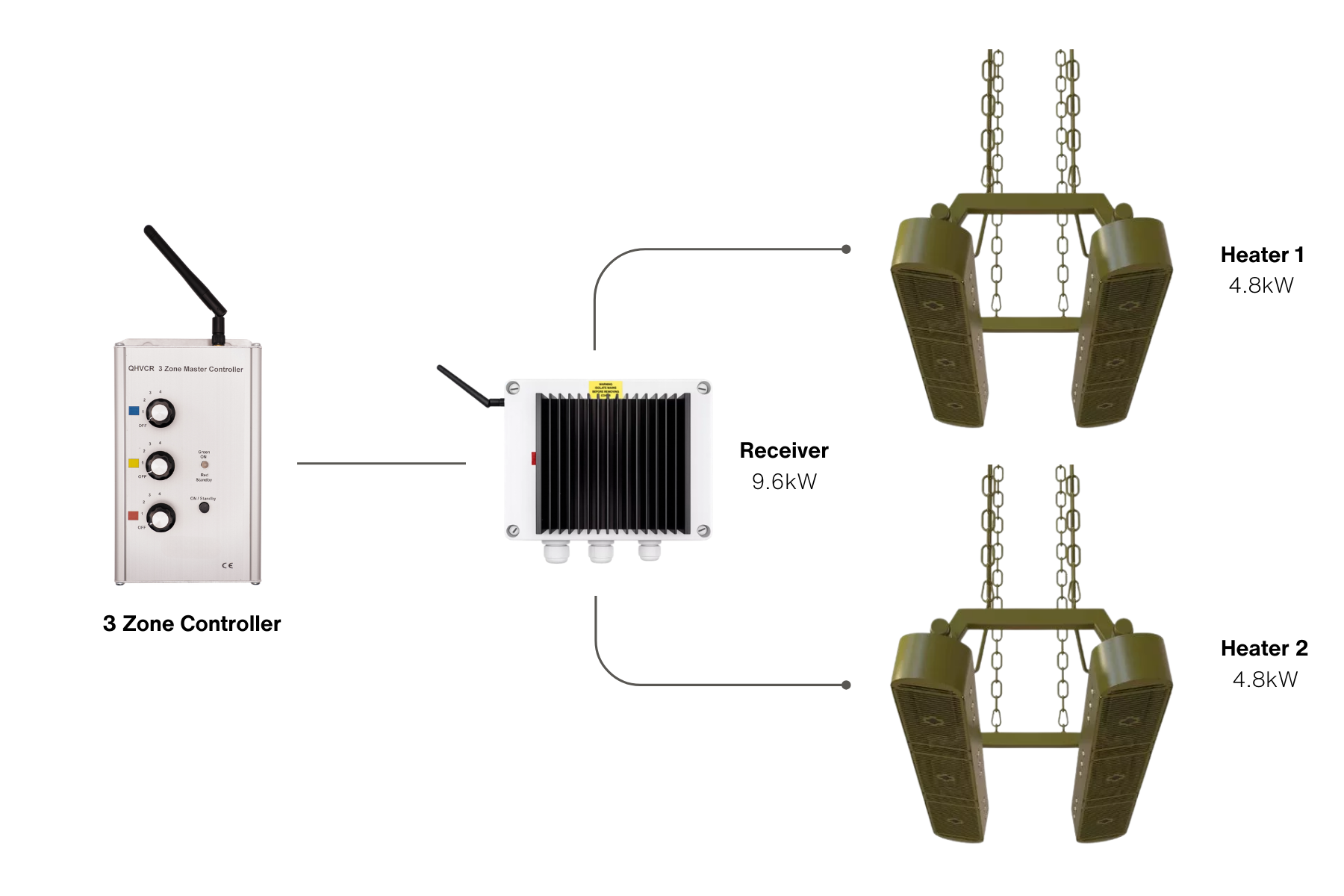

For example, a simple heating solution for a church or place of worship might involve installing two Shadow Solace 48 infrared heaters, each rated at 4.8kW.
Both heaters can be connected to a single 9.6kW receiver, allowing them to operate together within one heating zone. This provides focused warmth to areas such as seating or side aisles, while allowing the heating to be switched on independently when required, such as during services or community events.
Please be advised that the current electrical advice for install is to use a D32 MCB breaker with the RF control system.
