Shadow Industrial Infrared Heaters are suitable for all commercial spaces, working exceptionally well in both indoor and outdoor spaces. Whether it’s heating a large production hall or open-air warehouse, infrared heating solutions provide effective warmth in different environments, no matter the surrounding conditions.
Shadow Industrial Infrared Heaters offer your environment with different mounting options, either mount to the wall or ceiling. This versatility allows for easy installation in different spaces and adaptability to specific layout requirements. It provides flexibility in positioning the heaters to achieve the desired heating coverage and optimise space utilisation.
Customise your heating experience entirely and work at the exact temperature you want to when pairing your heater with one of our controllers. Have a consistent heating temperature amongst each zone within your environment or control each heater separately if certain areas need more or less heat than others.
Length 1292mm
Width 525mm
Depth 184mm

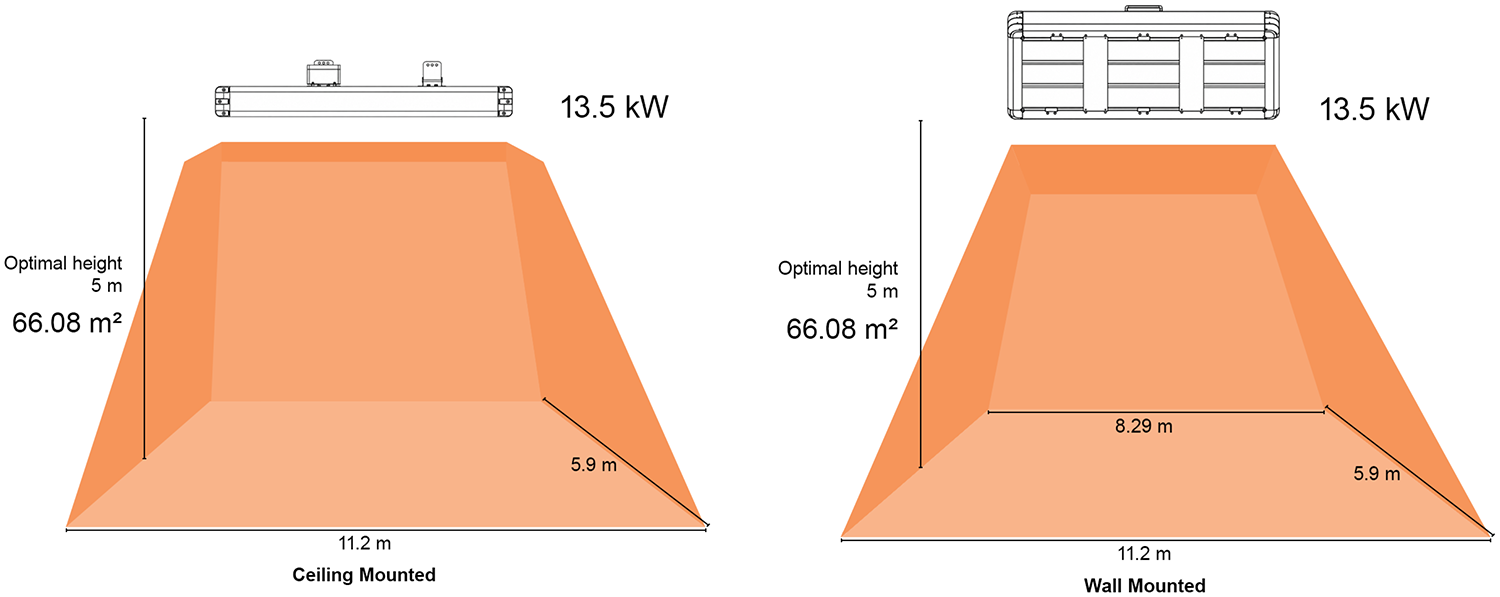

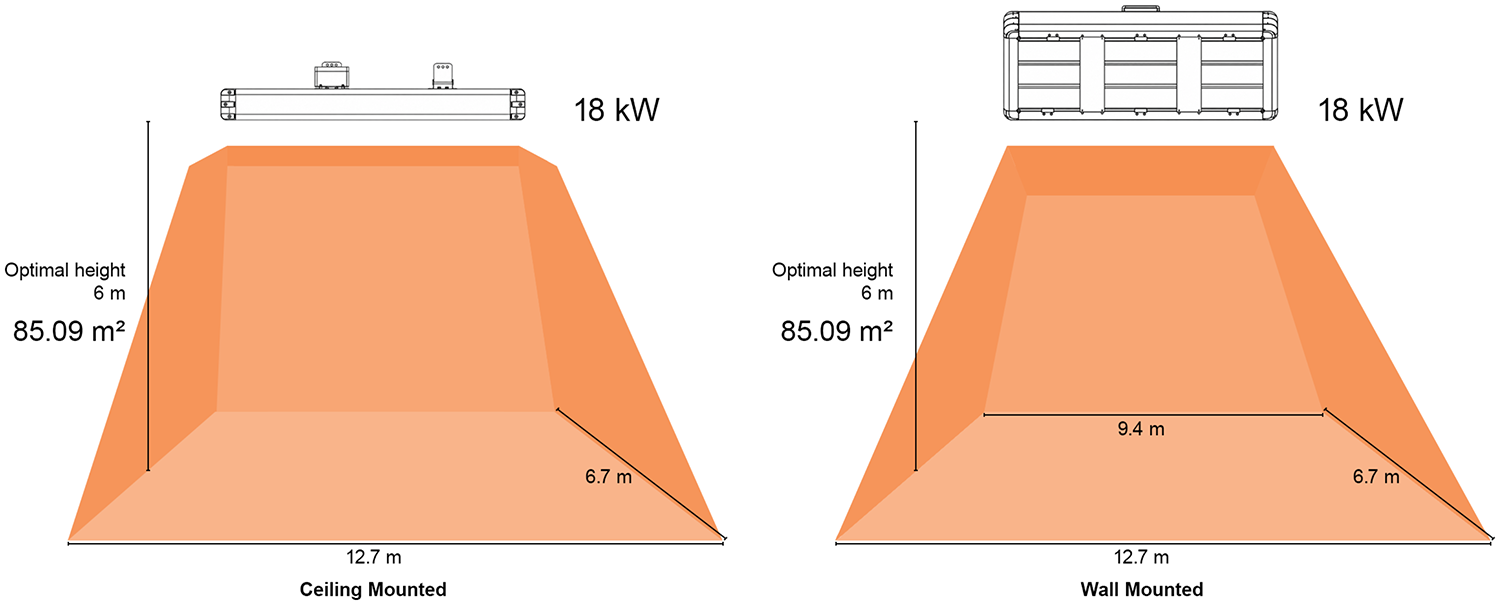

Typical coverage areas obtained from the 13.5kW and 18kW models
The Shadow Industrial Heater Vertical range is the perfect option to heat large industrial or warehouse spaces. Perfect for assembly lines in factories or picking and despatch areas in warehouses.
Heating large or difficult to heat buildings generally requires high power and energy efficient heating solutions. The Shadow Industrial Heater is just that and possesses all the necessary characteristics to make it the best choice for large spaces.
The Shadow Infrared Industrial Heaters excels at taking no time at all to produce truly impressive amounts of heat and warm up people and objects within its coverage area, an important factor when dealing with large open spaces.
The 240v version is is available in 3kW, 4kW or 6kW versions. The three phase version (415v) is available in 9kW, 12kW, 13.5kW and 18kW sizes. For those customers that require more power.
The short-wave infrared our heaters operate, cuts through airflow to directly target the surrounding objects and people.
This is different to gas heaters, where the heat will rise and result in much of the heat being wasted.
The Shadow 18kW offers a flexible design that allows it to be mounted almost anywhere, so you can maximise its heat output and ensure it is running to its full potential. This infrared heater has been operated in a number of different settings, including indoor sports venues, churches, large factories, zoos, shopping malls and many more.
Note the coverage area is a guide only and is influenced by a number of factors such as the overall ceiling height, draughts from open doors and windows and quality of insulation in the area. Whilst the inner areas will obtain instant heat the outer areas will take longer to warm up. Heat is also subjective and different people feel warm at different heat levels and people who are sat still will need more heat than more active workers.
We have a number of different industrial infrared heaters in our range. The heat output ranges from 3kW to 18kW so take a look to find the right heater for your work area or give us a call to go though your requirements.
Our industrial infrared heaters allow businesses to instantly achieve consistent warmth throughout their environment without any of the heat being wasted through an open door. Having minimal wastage means that businesses are using their energy on only the areas they need. Adjusting the heat output allows businesses to avoid overheating areas and optimise their energy usage.
Zoning is another way of maximising energy efficiency as businesses can have the heater automatically switch off when an area becomes unoccupied, helping them avoid unnecessary energy wastage.
Shadow 18kW Industrial Heater #903672
|
Shadow 13.5kW Industrial Heater #903672-15
|
|
---|---|---|
Dimensions (W) mm | 525 | 525 |
Dimensions (H) mm | 111 | 111 |
Dimensions (L) mm | 1292 | 1292 |
Coverage (M sq.) | 85.09 | 66.08 |
Phase supply | 3 Phase | 3 Phase |
Lamps x power (kW) | 9 x 2 | 9 x 1.5 |
Total Power (kW) | 18 | 13.5 |
Voltage (V) | 380-415 | 380-415 |
Current per phase (A) | 26 | 20 |
Min. height from floor (cm) | 600 | 500 |
Min. distance from ceiling (cm) | 25 | 25 |
Min. distance from side wall | 400 | 350 |
Weight without guard (kg) | 16 | 16 |
Warranty (years) | 2 | 2 |
Lamp Length (mm) | 382 | 382 |
